Cantilever gate with pedestrian gate

Gate uphill or downhill? no problem for VISIO systems. The project that we handed over in the city of Nové Mesto nad Váhom can boast not only an interesting atypical design with the designation 300, but also the realization itself. The content of a cantilever gate with full automation, where the stainless steel belts are slanted according to the client’s request and the barrier, where the stainless steel belts are flat, is really packed with everything that our company offers, such as a video intercom, electric lock, control by phone, LED lighting, etc. .

Client: Mehran F.

Place: Nové Mesto nad Váhom

Date: 10/12/2021

Order from the customer

The client, with already prepared openings, contacted us with a request to close the space. We had information that it was difficult to find a company that would take care of the given openings. However, with us, this project got a stop sign in the sense that the client didn’t have to look any further. Even with such projects, we want to show our clients what tailor-made production means. We went over all the details with the client, we prepared for him visuals of the layout of the stainless steel belts, and then after everything was agreed upon, we put the project into production.

01.

Dimension of holes

Cantilever gate – 3490mm x 2140mm

Pedestrian gate – 970mm x 2140mm

02.

Pattern

03.

Color

RAL 7016 Fine structure

04.

Accessories

– KEY drive (LED lighting, beacon, photocells, 2x controller)

– KUBE – phone control

– Stainless steel fittings

– Implemented clipboard

– Video intercom with electromagnetic lock

– Cover system

–  Rubber gasket

Project realisation

From the beginning of the project, it was necessary to involve more brain cells. Even the focus of the main gate, which was on an incline, was more difficult. However, a fully trained sales representative with laser equipment was able to focus the project and send it to the designer for processing. The designer then calculated and calculated. It was necessary to process the custom-made construction and then estimate the stainless steel strips so that the client’s requirements were processed. Production and assembly went without complications, and at the end of the day, we handed over a project worthy of admiration to the client with a smile on his face.

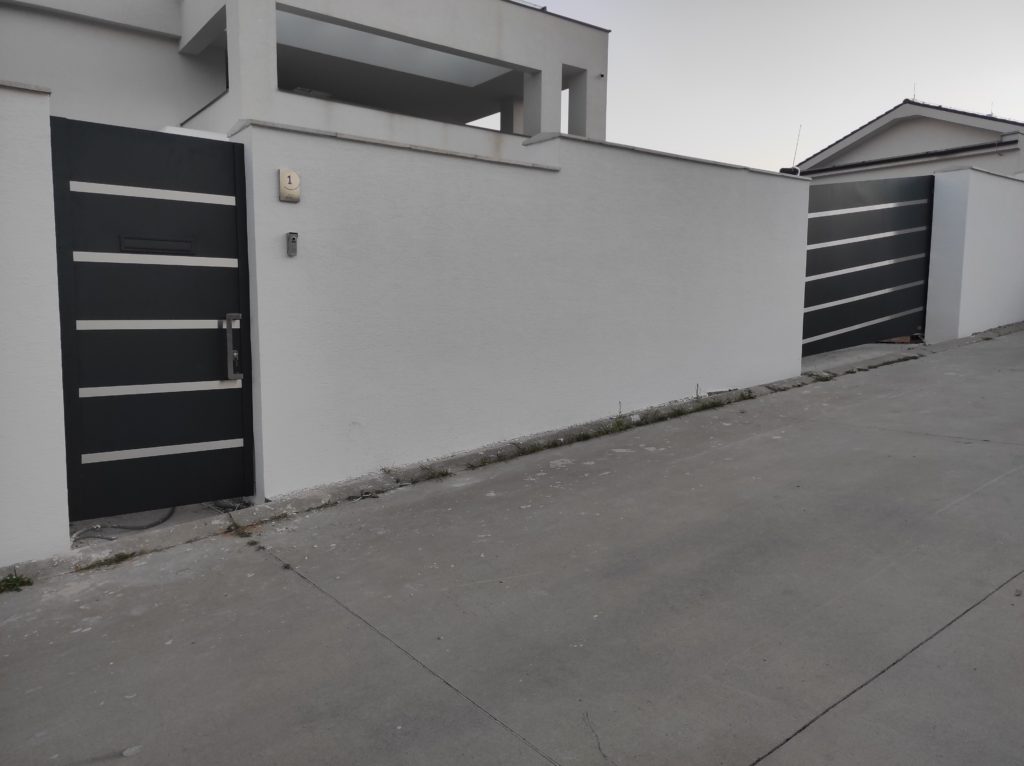

General view

General view

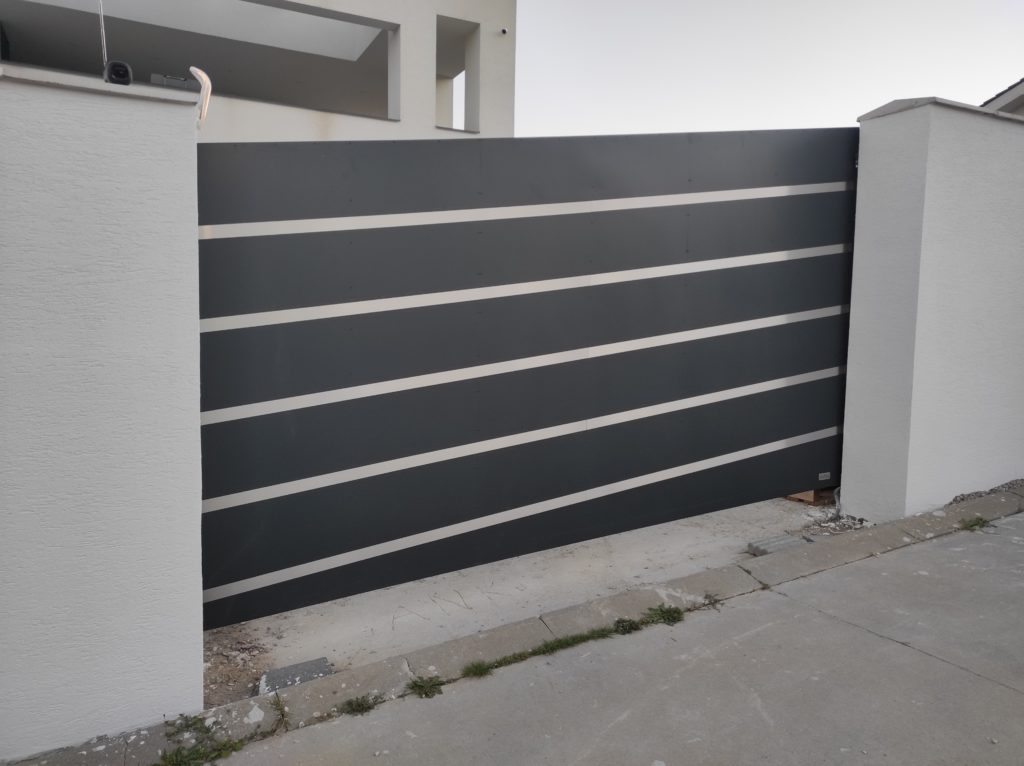

Cantilever gate

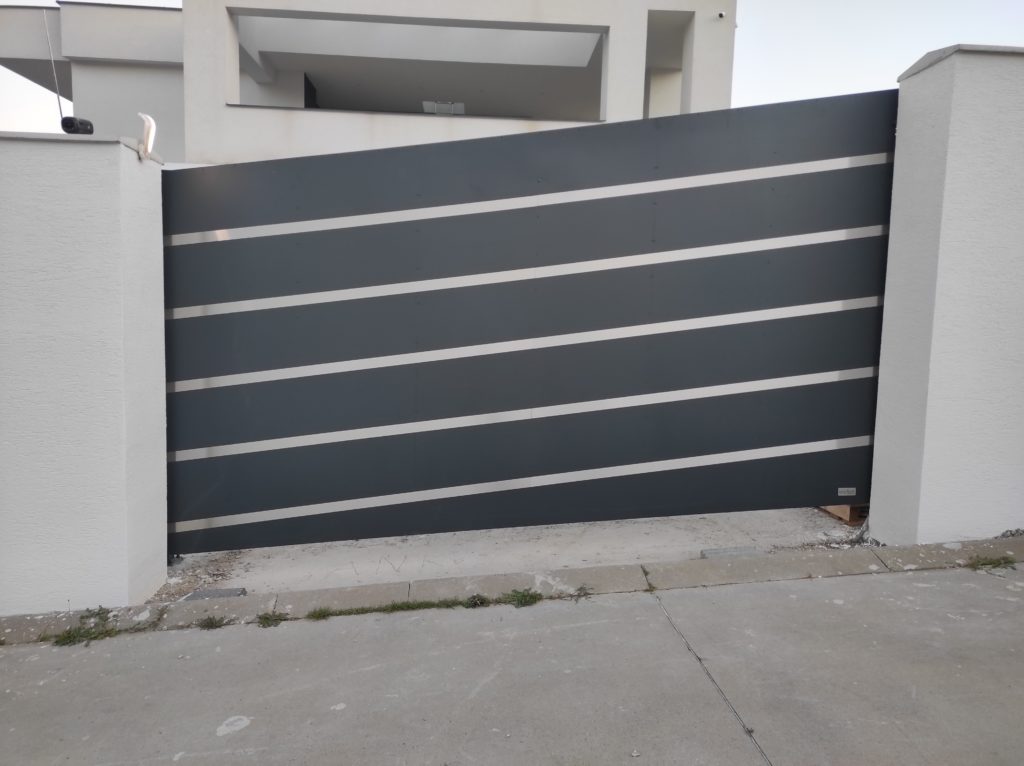

Cantilever gate

Cantilever gate
